xeokit XKT Importer and Exporter

---

Import models as xeokit's native binary XKT format

---

The xeokit SDK allows us to import 3D models from XKT, which is xeokit's native runtime asset delivery format for model representations and semantics.

The XKT format compresses large double-precision model geometry to a compact payload that loads quickly over the Web into a xeokit viewer running in the browser.

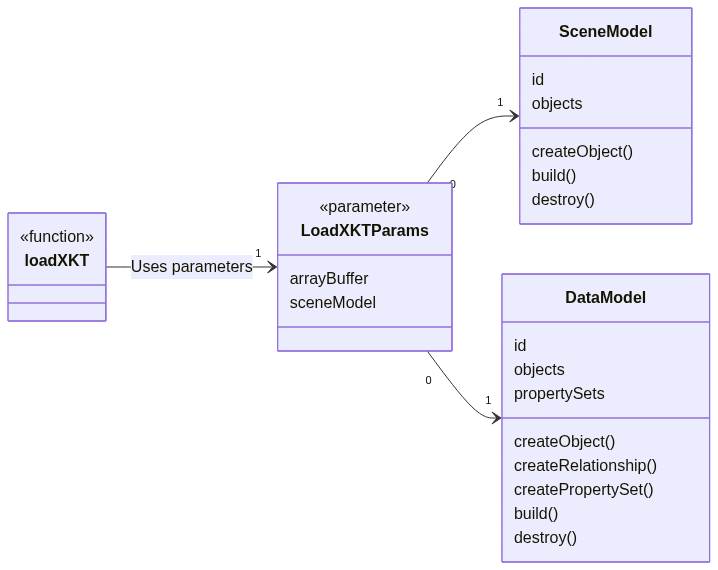

To import a XKT model into xeokit, use the loadXKT function, which will load the file into a SceneModel.

Use the loadMetaModel function to load legacy JSON metadata into a DataModel.

Installation

npm install @xeokit/sdk
Copy

Usage

In the example below, we will create a Viewer with a WebGLRenderer and a Scene, which holds model geometry and materials.

On our Viewer, we will create a single View to render it to a canvas element on the page. We will also attach a CameraControl to our View, allowing us to control its camera with mouse and touch input.

Within the Scene, we will create a SceneModel to hold a model. We will then use loadXKT to load any XKT file into our SceneModel.

The SDKError class will be used to handle any errors that may occur during this process.

• Run this example

import {SDKError} from "@xeokit/core";
import {Scene} from "@xeokit/scene";
import {WebGLRenderer} from "@xeokit/webglrenderer";
import {Viewer} from "@xeokit/viewer";
import {CameraControl} from "@xeokit/cameracontrol";
import {loadXKT} from "@xeokit/xkt";

const scene = new Scene();

const renderer = new WebGLRenderer({});

const viewer = new Viewer({
    id: "myViewer",
    scene,
    renderer
});

const view = viewer.createView({
    id: "myView",
    elementId: "myCanvas" // << Ensure that this HTMLElement exists in the page
});

if (view instanceof SDKError) {
    console.error(`Error creating View: ${view.message}`);

} else {

    view.camera.eye = [1841982.93, 10.03, -5173286.74];
    view.camera.look = [1842009.49, 9.68, -5173295.85];
    view.camera.up = [0.0, 1.0, 0.0];

    new CameraControl(view, {});

    const sceneModel = scene.createModel({
        id: "myModel"
    });

    if (sceneModel instanceof SDKError) {
        console.error(`Error creating SceneModel: ${sceneModel.message}`);

    } else {

        fetch("model.xkt").then(response => {

            response.arrayBuffer().then(fileData => {

                loadXKT({
                    fileData,
                    sceneModel
                }).then(() => {

                    sceneModel.build();

                }).catch(sdkError => {
                    sceneModel.destroy();
                    console.error(`Error loading XKT: ${sdkError.message}`);
                });

            }).catch(message => {
                console.error(`Error creating ArrayBuffer: ${message}`);
            });

        }).catch(message => {
            console.error(`Error fetching model: ${message}`);
        });
    }
}
Copy
