High‑performance AECO visualization for the web and Node.js
Welcome to xeokit, a flexible, production‑grade SDK for creating fast, interactive visualizations of AECO (Architecture, Engineering, Construction & Operations) models directly in the browser or in Node.js.
Built with TypeScript, xeokit is designed for extreme performance: it streams, loads, and renders very large models with minimal memory and CPU usage. The SDK cleanly separates data, scene representation, and rendering, making it suitable for everything from lightweight viewers to complex BIM pipelines.

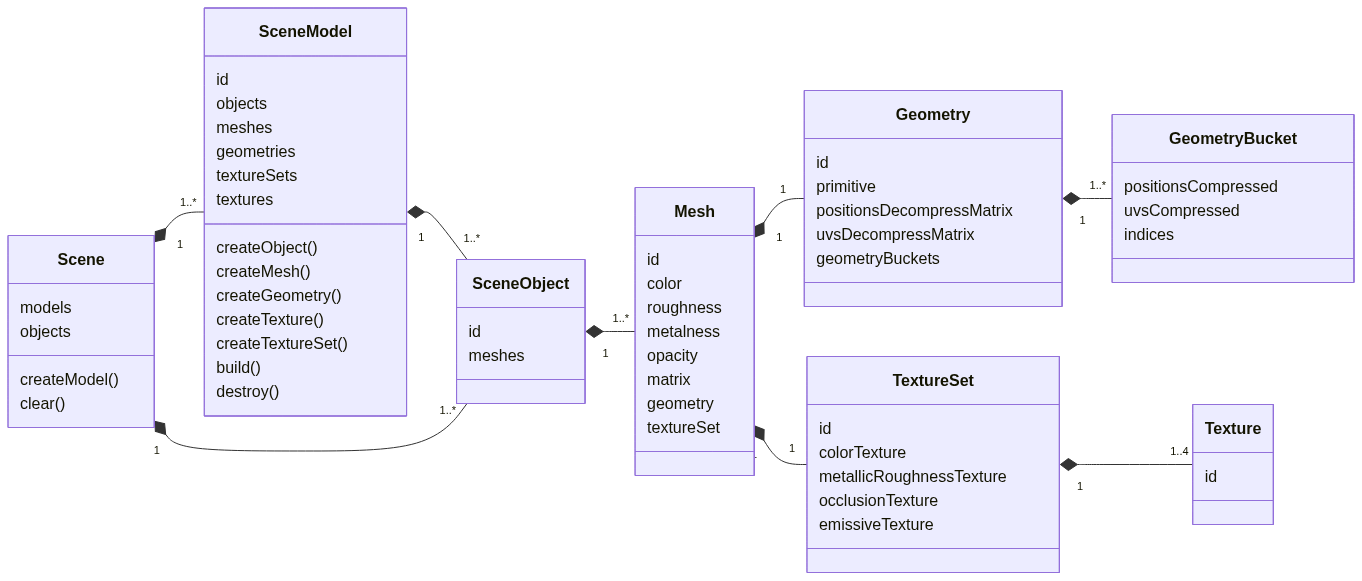

The scene graph represents 3D model geometry, materials, and objects. It is renderer‑agnostic and works identically in the browser and Node.js. You can use it to:
The scene graph emits events for every structural or visual change.
| Module | Description |
|---|---|
@xeokit/sdk/scene |
Scene graph containing geometries, materials, and objects |
The data graph manages model semantics using an entity‑relationship structure. It stores:
Like the scene graph, it runs in both browser and Node.js environments and emits change events independently of rendering.
| Module | Description |
|---|---|
@xeokit/sdk/data |
Semantic entity‑relationship graph |
xeokit includes a high‑performance browser viewer that attaches to a scene graph and reacts to its events in real time.
Rendering is handled by pluggable backends, allowing support for multiple graphics APIs.
Key capabilities:
| Module | Description |
|---|---|
@xeokit/sdk/viewer |
Browser‑based model viewer |
@xeokit/sdk/webglrenderer |
WebGL rendering backend |
@xeokit/sdk/cameracontrol |
Interactive camera controls |
@xeokit/sdk/treeview |
HTML tree view widget |
@xeokit/sdk/locale |
Localization service |
xeokit supports several industry‑standard AECO formats. These modules can be used in:
| Module | Description |
|---|---|
@xeokit/sdk/formats/dotbim |
Import/export DotBIM |
@xeokit/sdk/formats/xgf |
Import/export XGF |
@xeokit/sdk/formats/gltf |
Import glTF / GLB |
@xeokit/sdk/formats/las |
Import LAS point clouds |
@xeokit/sdk/formats/cityjson |
Import CityJSON |
@xeokit/sdk/formats/ifc |
Import IFC |
@xeokit/sdk/formats/xkt |
Import XKT |
@xeokit/sdk/formats/datamodel |
Native data models |
@xeokit/sdk/formats/scenedata |
Native scene models |
Convert between multiple AECO formats using a unified API or CLI.
| Module | Description |
|---|---|
@xeokit/sdk/modelconverter |
Multi‑format converter |
@xeokit/sdk/xeoconvert |
CLI wrapper |
Share viewer state and issues with other BIM tools using BCF Viewpoints, enabling collaborative workflows across platforms.
| Module | Description |
|---|---|
@xeokit/sdk/bcf |
Load and save BCF Viewpoints |
Some minimal examples to get you started. Find more examples at xeokit.github.io/sdk/examples.
In the example below, we create a simple 3D box model and set up a viewer to display it in a canvas
element with the ID myCanvas. The camera orbits around the box to create a spinning effect.
In xeokit, everything starts with a Scene that holds all 3D content. We then create a Viewer to visualize the scene, and a WebGLRenderer to handle rendering.
Instead of using exceptions, errors are handled gracefully using result monads. Any method in the SDK that can
fail returns an SDKResult that indicates success or failure.
Scene content is fully dynamic and can be modified at runtime. We can create and destroy geometries, meshes, and objects in the Scene and the Viewer will update automatically.
Everything is coupled via events. The Scene emits events when content changes; the Viewer emits events when viewing parameters change, and the WebGLRenderer reacts to all these events to update the display accordingly.
npm install @xeokit/sdk
import { Scene } from "@xeokit/sdk/scene";
import { Viewer } from "@xeokit/sdk/viewer";
import { WebGLRenderer } from "@xeokit/sdk/webglrenderer";
import { SDKTask } from "@xeokit/sdk/core";
import { TrianglesPrimitive } from "@xeokit/sdk/constants";
const scene = new Scene();
const viewer = new Viewer({ scene });
const renderer = new WebGLRenderer({ viewer });
const viewResult = viewer.createView({
id: "view",
elementId: "myCanvas"
});
if (!viewResult.ok) {
throw new Error(viewResult.error);
}
const view = viewResult.value
view.camera.eye = [0, 0, 10];
view.camera.look = [0, 0, 0];
view.camera.up = [0, 1, 0];
const modelResult = scene.createModel({
id: "boxModel"
});
if (!modelResult.ok) {
throw new Error(modelResult.error);
}
const model = modelResult.value;
model.createGeometry({
id: "boxGeometry",
primitive: TrianglesPrimitive,
positions: [-1, -1, -1, 1, -1, -1, 1, 1, -1, -1, 1, -1],
indices: [0, 1, 2, 0, 2, 3]
});
model.addMesh({
id: "boxMesh",
geometryId: "boxGeometry",
color: [1, 0, 0]
});
model.createObject({
id: "box",
meshIds: ["boxMesh"]
});
new SDKTask({
repeat: true,
task: () => view.camera.orbitYaw(1)
});
Load and display a IFC model in the browser, including semantic structure via the data graph.
import { Scene } from "@xeokit/sdk/scene";
import { Data, searchObjects } from "@xeokit/sdk/data";
import { Viewer } from "@xeokit/sdk/viewer";
import { WebGLRenderer } from "@xeokit/sdk/webglrenderer";
import { CameraControl } from "@xeokit/sdk/cameracontrol";
import { IFCLoader } from "@xeokit/sdk/formats/dotbim";
// Create containers for geometry and optional structural data
const scene = new Scene();
const data = new Data();
// Create a Viewer and WebGL renderer
const viewer = new Viewer({ scene });
new WebGLRenderer({ viewer });
// Create a View bound to an existing canvas element
const view = viewer.createView({
id: "myView",
elementId: "myCanvas" // Ensure this element exists
}).value;
// Position the camera
view.camera.eye = [-6.01, 4.85, 9.11];
view.camera.look = [3.93, -2.65, -12.51];
view.camera.up = [0.12, 0.95, -0.27];
// Enable mouse / touch camera interaction
new CameraControl(view, {});
// Create target models for the loader
const sceneModel = scene.createModel({ id: "myModel" }).value;
const dataModel = data.createModel({ id: "myModel" }).value;
// Create the IFC loader
const ifcLoader = new IFCLoader();
// Fetch and decode the IFC file
fetch("model.ifc")
.then((r) => r.arrayBuffer())
.then((fileData) => {
// Load geometry (and optional node hierarchy) into the models
return ifcLoader.load({
fileData,
sceneModel,
dataModel
});
})
.then(() => {
// Model successfully loaded and visible.
// Search the data graph for IfcWall objects, starting at the
// IfcProject root node, including any children via IfcRelAggregates relationships.
const resultObjectIds = [];
const result = searchObjects(data, {
startObjectId: "38aOKO8_DDkBd1FHm_lVXz", // Root IfcProject ID
includeObjects: ["IfcWall"],
includeRelated: ["IfcRelAggregates"],
resultObjectIds
});
// Check if the query succeeded.
if (!result.ok) {
console.error("Error querying IFC data: " + result.error);
return;
}
// If the query succeeded, go ahead and mark whatever
// objects we found as selected. Now all the IfcWall objects
// in the Viewer will appear selected and glowing.
view.setObjectsSelected(resultObjectIds, true);
})
.catch((err) => {
// Clean up on failure
sceneModel.destroy();
dataModel.destroy();
console.error("Error loading IFC:", err);
});
Convert an IFC file to DotBIM format using the xeoconvert command-line tool.
node ./node_modules/@xeokit/sdk/dist/xeoconvert.js \
--pipeline ifc2dotbim \
--ifc model.ifc \
--dotbim model.bim \
--log \
--stats conversion_stats.json
Install the package manager (recommended globally):
Clone the repository:
```bash
git clone https://github.com/xeokit/sdk
cd sdk
Install dependencies:
pnpm install
Build the xeokit SDK:
pnpm sdk-dist
Output:
./packages/sdk/dist
This directory contains the compiled JavaScript bundles and dependencies.
Generate API documentation:
pnpm website-sdk-docs
Output:
./packages/website/docs
The website package is configured as the root for GitHub Pages hosting.
