xeokit Scene (Buildable 3D Scene Representation)

Core scene-graph types and APIs for constructing, inspecting, importing, exporting, and rendering 3D content in xeokit.

This module defines xeokit’s primary in-memory scene graph model. It provides a structured, extensible representation of 3D content that is designed to work consistently in both browsers and Node.js.

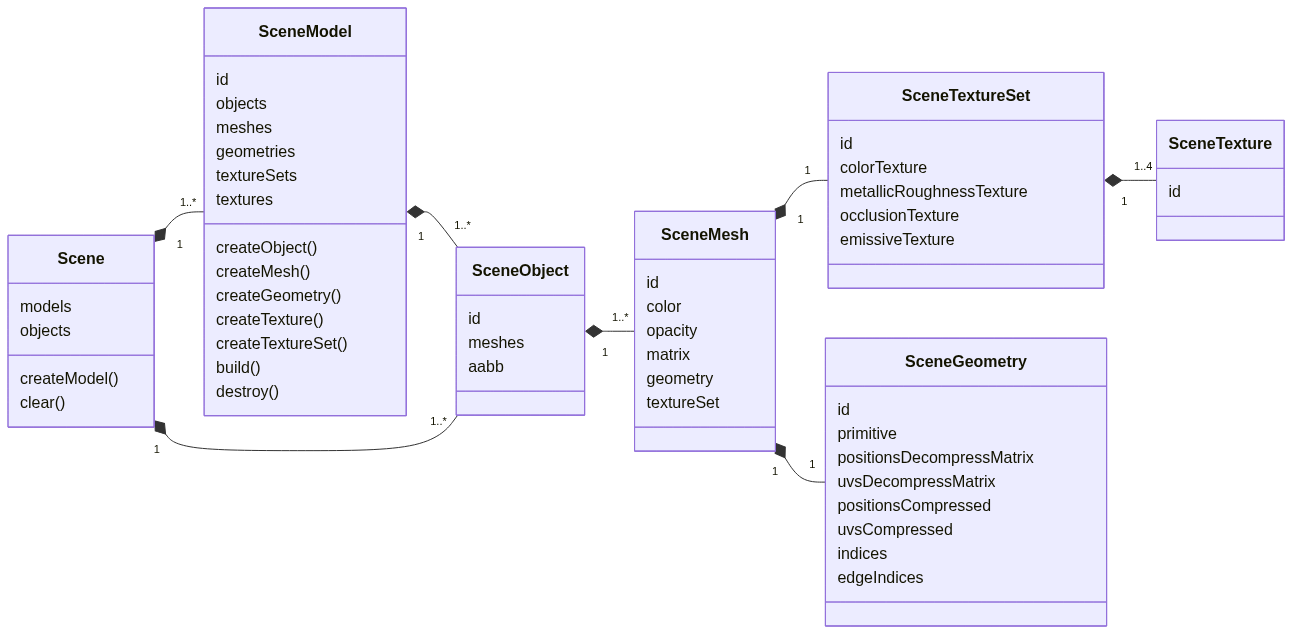

classDiagram
    Scene "1" *-- "*" SceneModel : models
    Scene "1" *-- "1" CoordinateSystem : coordinateSystem
    Scene "1" *-- "1" SceneEvents : emits
    SceneModel "1" o-- "*" SceneObject : objects
    SceneModel "1" *-- "1" CoordinateSystem : coordinateSystem
    SceneObject "1" o-- "*" SceneMesh : meshes
    SceneMesh "1" o-- "1" SceneGeometry : geometry
    SceneMesh "1" o-- "1" SceneTextureSet : textureSet
    SceneMesh "1" o-- "1" SceneTransform : parentTransform
    SceneTransform "1" o-- "1" SceneTransform : parentTransform
    SceneTextureSet "1" o-- "1" SceneTexture : colorTexture
    SceneTextureSet "1" o-- "1" SceneTexture : metallicRoughnessTexture
    SceneTextureSet "1" o-- "1" SceneTexture : occlusionTexture
    SceneTextureSet "1" o-- "1" SceneTexture : emissiveTexture
    Scene:createModel()
    SceneModel:createObject()
    SceneModel:createGeometry()
    SceneModel:createTexture()
    SceneModel:createTextureSet()
    SceneModel:createMesh()
    SceneModel:createTransform()
    SceneModel:fromParams()
    SceneModel:toParams()
    SceneModel:destroy()
    SceneObject:destroy()
    SceneMesh:destroy()
    SceneEvents:onError
    SceneEvents:onSceneDestroyed
    SceneEvents  : onSceneModelCreated
    SceneEvents  : onSceneModelDestroyed
    SceneEvents  : onSceneObjectCreated
    SceneEvents  : onSceneObjectDestroyed
    SceneEvents : etc.
    SceneGeometry:primitiveType
    SceneGeometry:positions
    SceneGeometry:indices
    SceneGeometry:uvs
    Scene:models
    Scene:objects
    SceneModel:objects
    SceneModel:meshes
    SceneModel:geometries
    SceneModel:textures
    SceneModel:textureSets
    SceneMesh:geometry
    SceneMesh:textureSet
    SceneObject:meshes
    SceneMesh:color
    SceneMesh:opacity
    SceneMesh:matrix
    SceneMesh:transform
    SceneTransform:matrix
    SceneTransform:parentTransform
    CoordinateSystem:basis
    CoordinateSystem:units
    CoordinateSystem:origin
    CoordinateSystem:scaleToMeters
    Scene "1" *-- "*" SceneObject : objects
    SceneModel "1" *-- "*" SceneGeometry : geometries
    SceneModel "1" *-- "*" SceneTexture : textures
    SceneModel "1" *-- "*" SceneTextureSet : textureSets
    SceneModel "1" *-- "*" SceneMesh : meshes

At its core:

• A Scene is the top-level container and lifecycle manager.
• A Scene owns one or more SceneModels.
• Each SceneModel groups renderable and logical content, including:
  • SceneObjects (logical entities),
  • SceneMeshes (renderable instances),
  • SceneGeometries (shared vertex/index buffers),
  • SceneTextures and SceneTextureSets.

The scene graph is deliberately buildable and serializable:

• Content can be created programmatically using builder-style APIs.
• Models can be imported from and exported to multiple industry formats (eg. gltf, las, cityjson, xgf, dotbim, ifc).
• SceneModels can be serialized to JSON and reconstructed later.
• A Scene can be attached to a Viewer for interactive rendering, or used headlessly in Node.js for conversion and processing workflows.

The SceneEvents system exposes lifecycle and error events, allowing applications to observe and react to changes as models, objects, and resources are created or destroyed.

A Scene uses a CoordinateSystem to specify its basis, units, origin, and scale. Each SceneModel can also have its own CoordinateSystem, enabling models from various sources to be combined without prior conversion. The SDK manages coordinate system transformations automatically during rendering and interaction, preserving each model’s original data.

Installation

npm install @xeokit/sdk
Copy

Quick Start (Tutorial)

This tutorial builds a simple “table” model (5 parts), attaches a Viewer, and shows how to read back created components.

1) Import the modules you’ll use

import { Scene } from "@xeokit/sdk/scene";
import {
  TrianglesPrimitive,
  LinearEncoding,
  LinearFilter,
  ClampToEdgeWrapping
} from "@xeokit/sdk/constants";

import { Viewer } from "@xeokit/sdk/viewer";
import { WebGLRenderer } from "@xeokit/sdk/webglrenderer";
import { CameraControl } from "@xeokit/sdk/cameracontrol";
Copy

2) Create a Scene

const scene = new Scene();
Copy

3) Subscribe to Scene lifecycle events (optional)

Everything that happens in a Scene is reported via the SceneEvents dispatcher at Scene.events.

scene.events.onError.subscribe((scene, sdkResult) => {
  console.error(`Scene error: ${sdkResult.error}`);
});

scene.events.onSceneModelCreated.subscribe((scene, sceneModel) => {
  console.log(`SceneModel created: ${sceneModel.id}`);
});

scene.events.onSceneObjectCreated.subscribe((scene, sceneObject) => {
  console.log(`SceneObject created: ${sceneObject.id}`);
});
Copy

4) Configure the Scene coordinate system (optional)

The Scene coordinate system is configured via Scene.coordinateSystem. By default, the Scene uses a right-handed Z-Up coordinate system.

Each SceneModel may also specify its own SceneModel.coordinateSystem, allowing you to mix models that originate in different coordinate systems without pre-processing them into a single common basis.

Example: set the Scene to a left-handed, Y-Up basis:

scene.coordinateSystem.basis = [ // +Y-up left-handed
  1, 0, 0,  // Right
  0, 1, 0,  // Up
  0, 0, -1  // Forward
];

scene.coordinateSystem.units = "meters";
scene.coordinateSystem.origin = [0, 0, 0];
scene.coordinateSystem.scaleToMeters = 1.0;
Copy

5) Attach a Viewer (browser only)

A Scene is renderer-agnostic. In Node.js you typically build/convert/export without rendering. In the browser, attach the Scene to a Viewer and WebGLRenderer.

A minimal setup uses:

• WebGLRenderer (WebGL rendering)
• View (a canvas target)
• CameraControl (mouse/touch navigation)

const viewer = new Viewer({ scene });

const webglRenderer = new WebGLRenderer({ viewer });

const viewResult = viewer.createView({
  id: "myView",
  elementId: "myView1"
});

if (!viewResult.ok) {
  console.error(viewResult.error);
  // ..handle error
}

const view = viewResult.value;

view.camera.eye  = [0, 0, -100];
view.camera.look = [0, 0, 0];
view.camera.up   = [0, 1, 0];

const cameraControl = new CameraControl(view);
Copy

6) Build a SceneModel (a simple “table”)

Next we create a SceneModel and populate it with:

• one SceneGeometry (a box),
• one SceneTexture + SceneTextureSet,
• five SceneMeshes (legs + tabletop),
• five SceneObjects (logical parts referencing meshes).

We’ll also set a local coordinate system for this SceneModel (optional).

const sceneModelResult = scene.createModel({
  id: "theModel",

  // Optional: coordinate system for this SceneModel
  coordinateSystem: {
    basis: [ // +Y-up right-handed
      1, 0, 0,  // Right
      0, 1, 0,  // Up
      0, 0, -1  // Forward
    ],
    units: "centimeters",
    origin: [0, 0, 0],
    scaleToMeters: 0.01
  }
});

if (!sceneModelResult.ok) {
  console.error(sceneModelResult.error);
  // ..handle error
}

const sceneModel = sceneModelResult.value;

// 1) Create shared geometry (a box)
const geometryResult = sceneModel.createGeometry({
  id: "boxGeometry",
  primitive: TrianglesPrimitive,
  positions: [
    1, 1, 1,  -1, 1, 1,
    -1, -1, 1,  1, -1, 1,
    1, 1, -1,  -1, 1, -1,
    -1, -1, -1, 1, -1, -1
  ],
  indices: [
    0, 1, 2, 0, 2, 3,     // +Z
    4, 0, 3, 4, 3, 7,     // +X
    5, 4, 7, 5, 7, 6,     // -Z
    1, 5, 6, 1, 6, 2,     // -X
    4, 5, 1, 4, 1, 0,     // +Y
    3, 2, 6, 3, 6, 7      // -Y
  ]
});

if (!geometryResult.ok) {
  console.error(geometryResult.error);
  // ..handle error
}

// 2) Create a texture and a texture set
const textureResult = sceneModel.createTexture({
  id: "colorTexture",
  src: "./assets/sample_etc1s.ktx2",
  preloadColor: [1, 0, 0, 1],
  flipY: false,
  encoding: LinearEncoding,
  magFilter: LinearFilter,
  minFilter: LinearFilter,
  wrapR: ClampToEdgeWrapping,
  wrapS: ClampToEdgeWrapping,
  wrapT: ClampToEdgeWrapping
});

if (!textureResult.ok) {
  console.error(textureResult.error);
  // ..handle error
}

const textureSetResult = sceneModel.createTextureSet({
  id: "theTextureSet",
  colorTextureId: "colorTexture"
});

if (!textureSetResult.ok) {
  console.error(textureSetResult.error);
  // ..handle error
}

// 3) Create meshes (instances of the shared box geometry)
sceneModel.addMesh({
  id: "redLegMesh",
  geometryId: "boxGeometry",
  position: [-4, -6, -4],
  scale: [1, 3, 1],
  rotation: [0, 0, 0],
  color: [1, 0.3, 0.3],
  textureSetId: "theTextureSet"
});

sceneModel.addMesh({
  id: "greenLegMesh",
  geometryId: "boxGeometry",
  position: [4, -6, -4],
  scale: [1, 3, 1],
  rotation: [0, 0, 0],
  color: [0.3, 1.0, 0.3],
  textureSetId: "theTextureSet"
});

sceneModel.addMesh({
  id: "blueLegMesh",
  geometryId: "boxGeometry",
  position: [4, -6, 4],
  scale: [1, 3, 1],
  rotation: [0, 0, 0],
  color: [0.3, 0.3, 1.0],
  textureSetId: "theTextureSet"
});

sceneModel.addMesh({
  id: "yellowLegMesh",
  geometryId: "boxGeometry",
  position: [-4, -6, 4],
  scale: [1, 3, 1],
  rotation: [0, 0, 0],
  color: [1.0, 1.0, 0.0],
  textureSetId: "theTextureSet"
});

sceneModel.addMesh({
  id: "tableTopMesh",
  geometryId: "boxGeometry",
  position: [0, -3, 0],
  scale: [6, 0.5, 6],
  rotation: [0, 0, 0],
  color: [1.0, 0.3, 1.0],
  textureSetId: "theTextureSet"
});

// 4) Create objects (logical entities). Each SceneObject references one or more meshes.
sceneModel.createObject({ id: "redLegObject",    meshIds: ["redLegMesh"] });
sceneModel.createObject({ id: "greenLegObject",  meshIds: ["greenLegMesh"] });
sceneModel.createObject({ id: "blueLegObject",   meshIds: ["blueLegMesh"] });
sceneModel.createObject({ id: "yellowLegObject", meshIds: ["yellowLegMesh"] });
sceneModel.createObject({ id: "tableTopObject",  meshIds: ["tableTopMesh"] });

// SceneModel is now ready for use (rendering, picking, exporting, etc).
Copy

7) Read back components you created

The SceneModel stores its components in dictionaries keyed by ID. Note: the Scene also indexes objects globally by ID, so you can access an object through either the model or the scene.

const theSceneModel = scene.models["theModel"];

const colorTexture  = theSceneModel.textures["colorTexture"];
const textureSet    = theSceneModel.textureSets["theTextureSet"];
const boxGeometry   = theSceneModel.geometries["boxGeometry"];

const tableTopMesh  = theSceneModel.meshes["tableTopMesh"];
const tableTopObj1  = theSceneModel.objects["tableTopObject"];
const tableTopObj2  = scene.objects["tableTopObject"];
Copy

Using Compressed Geometry

When you create a SceneGeometry via SceneModel.createGeometry, the SDK may perform on-the-fly processing and compression of geometry parameters.

If you want faster SceneModel creation (or you already have geometry data offline), you can pre-compress parameters using compressGeometryParams, then create geometry from those compressed parameters using SceneModel.createGeometryCompressed.

In the example below, compressGeometryParams converts SceneGeometryParams into SceneGeometryCompressedParams:

import { compressGeometryParams } from "@xeokit/sdk/compression";
import { TrianglesPrimitive } from "@xeokit/sdk/constants";

const geometryCompressedParams = compressGeometryParams({
  id: "boxGeometry",
  primitive: TrianglesPrimitive,
  positions: [
    1, 1, 1,  -1, 1, 1,
    -1, -1, 1,  1, -1, 1,
    1, 1, -1,  -1, 1, -1,
    -1, -1, -1, 1, -1, -1
  ],
  indices: [
    0, 1, 2, 0, 2, 3,
    4, 0, 3, 4, 3, 7,
    5, 4, 7, 5, 7, 6,
    1, 5, 6, 1, 6, 2,
    4, 5, 1, 4, 1, 0,
    3, 2, 6, 3, 6, 7
  ]
});
Copy

A SceneGeometryCompressedParams typically includes:

• Vertex positions quantized to 16-bit integers
• Edge indices (when applicable, e.g. for TrianglesPrimitive)
• A quantization range (aabb) used to de-quantize in the Viewer

Create geometry from the compressed parameters:

const geometryResult2 = sceneModel.createGeometryCompressed(geometryCompressedParams);

if (!geometryResult2.ok) {
  console.error(geometryResult2.error);
}
Copy

Exporting a SceneModel to a file

SceneModels can be exported to several formats. For example, export to DotBIM with DotBIMExporter :

import { DotBIMExporter } from "@xeokit/sdk/formats/dotbim";

const exporter = new DotBIMExporter();

exporter.write({
  sceneModel,
  dataModel,
  version: "1.1.0" // Optional; defaults to the latest supported version
}).then(fileData => {
  // Use fileData as needed
}).catch(err => {
  console.error(err);
});
Copy

Importing a SceneModel from a file

Import SceneModels from several formats. For example, load DotBIM using DotBIMLoader:

import { DotBIMLoader } from "@xeokit/sdk/formats/dotbim";

const sceneModelResult2 = scene.createModel({ id: "mySceneModel2" });

if (!sceneModelResult2.ok) {
  console.error(sceneModelResult2.error);
  // ..handle error
}

const sceneModel2 = sceneModelResult2.value;
const dotBIMLoader = new DotBIMLoader();

fetch("model.bim")
  .then(response => response.json())
  .then(fileData => {
    return dotBIMLoader.load({ fileData, sceneModel: sceneModel2 });
  })
  .then(() => {
    // Loaded
  })
  .catch(err => {
    sceneModel2.destroy();
    console.error(`Error loading .BIM: ${err}`);
  });
Copy

Serializing a SceneModel to JSON

const toParamsResult = sceneModel2.toParams();

if (!toParamsResult.ok) {
  console.error(toParamsResult.error);
  // ..handle error
}

const sceneModelParams = toParamsResult.value;
Copy

Deserializing a SceneModel from JSON

const sceneModelResult3 = scene.createModel({ id: "mySceneModel3" });

if (!sceneModelResult3.ok) {
  console.error(sceneModelResult3.error);
  // ..handle error
}

const sceneModel3 = sceneModelResult3.value;

const fromParamsResult = sceneModel3.fromParams(sceneModelParams);

if (!fromParamsResult.ok) {
  console.error(fromParamsResult.error);
}
Copy

Destroying a SceneModel

sceneModel3.destroy();
Copy
